Lecture 5 - Data Structures

• we cannot always malloc more memory for an array if the memory after the current array position is already taken

• one solution is to move array to new location, however that adds operation time of O(n)

• This problem introduces the challenge in computer science of balancing the form of the memory that are allocated for programs against the worst-case running times
  • i.e. we can make improvements for one which usually has a detrimental impact on the other

• This balancing act comes is manipulated in the data structures used in a program

• Data structures are complex ways to organise data in memory, allowing information to be stored in the different layouts

• Tools needed to build data structures are
  • structs: to create custome data types
  • . to access properties in a structure
  • * to go to an address in memory pointed to by a pointer
  • - > to access propertied in a structure pointed to by a pointer
    • this is a new operator, and it is what linked list uses to go to a new address and look inside of structure.

Linked Lists

• with a linked list we can store a list of values which can be easily grown by storing subsequent values in different parts of memory

• To track all values in a linked list, we need to allocate enough memory for both the value of each element we want to store and the address of the next element

• the dual values are called a node
  • a node contains both an item and a pointer called next

Example structure for a node

typedef struct node { int number; struct node *next; } node;

• The tradeoff of this flexibility is we need to allocate twice as much memory for each element in order to spend less time adding values

• We can no longer use binary search either

• by convention, an additional element to the null indicating the end of list, is an element which is a pointer to the first item in the list

Stacks and Queues

• A queue is one type of data structure
  • has the form of first in first out
  • an item can be enqueued, that is the item can be put in queue
  • an item can be dequeued, that is the item leaves the queue

• A stack is another type
  • has the form of last in and last out
  • an item can be pushed on stack, that is put on top of stack
  • the top item can be popped off stack, that is taken from the stack

• there is a function in C called realloc which can reallocate memory for an array which has run out of contiguous memory space
  • this function takes two arguments, the array to be copied and the size of the new array
  • realloc handles all the following stages for you
    • creates a new array of requested size
    • copies values from array to be copied to new array
    • creates a pointer for new array
    • once copying is done, realloc frees the memory of first array
    • the pointer for previous array is then changed, pointing now to the new array
  • useful as amount of data in array changes, realloc can be used to grow or shrink the stack or queue

Trees

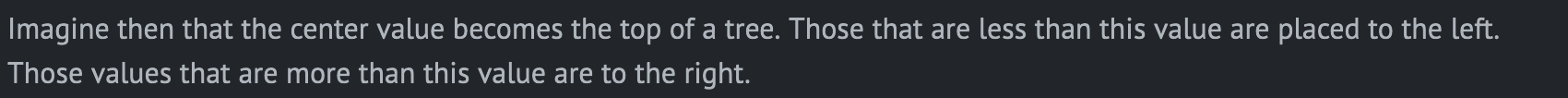

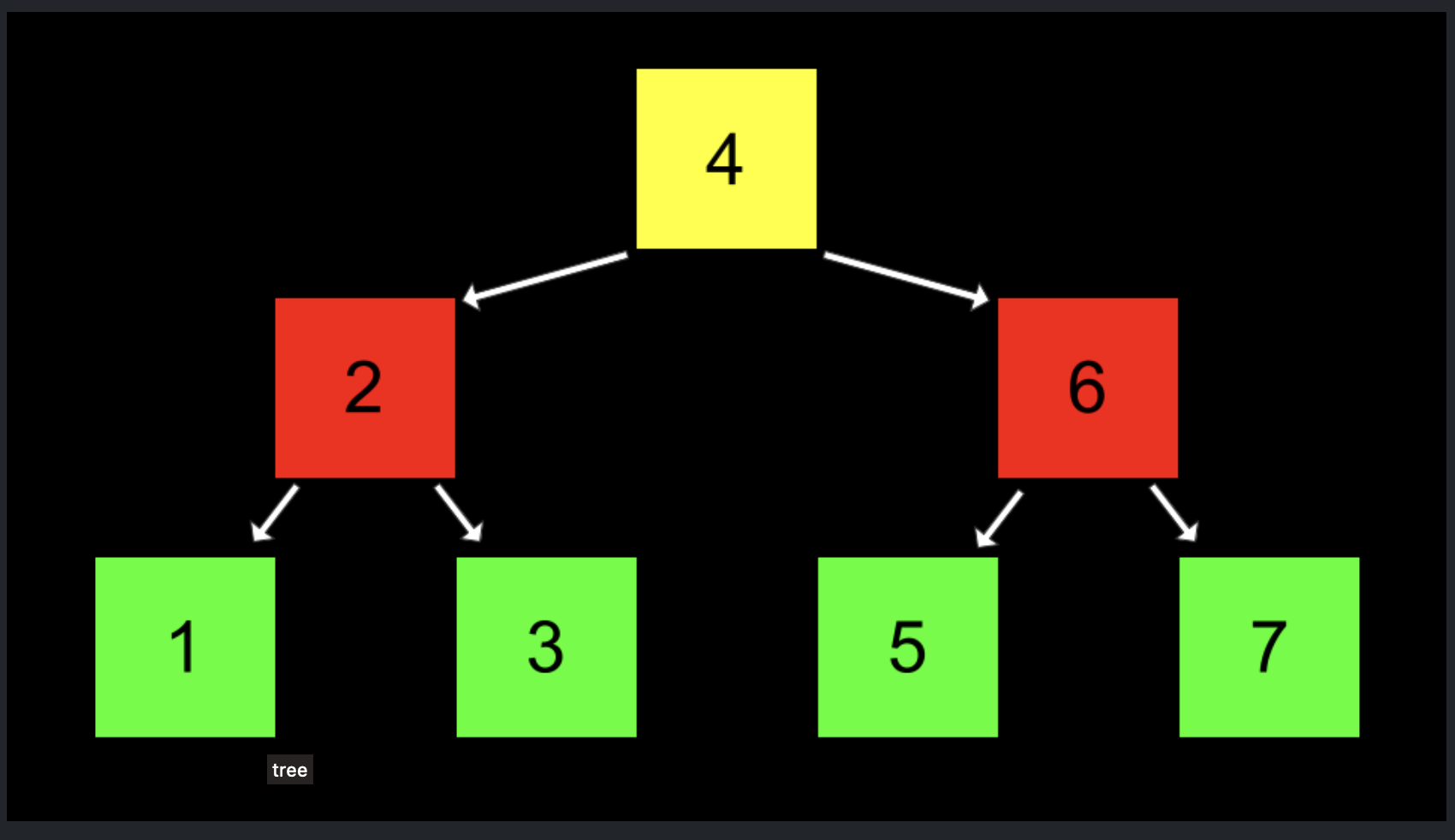

• Binary search trees are another data structure

• They store data more efficiently than stacks or queues by allowing faster searching and retrieval

• searching tree can be implemented by using recursion

• a tree can offer dynamism because it grows and shrinks easily

Dictionaries

• another data structure which have a key and value, much like a word and definition in a language dictionary

Hashing a Hash Tables

• hashing is the idea of taking a value or part of it and using that that hash as a shortcut to finding it later

• for example, in a data structure containing fruit, apples could be hashed by using the letter a, putting all fruit with the letter a in that ‘bucket’, and then find the apple data by using the shortcut of looking in the ‘a’ bucket.

• This example demonstrates the concept of bucketising

• A hash function is an algorithm which reduces a larger value into something small and predictable
  • generally involves representing a new array item with a number which represents where item should be placed

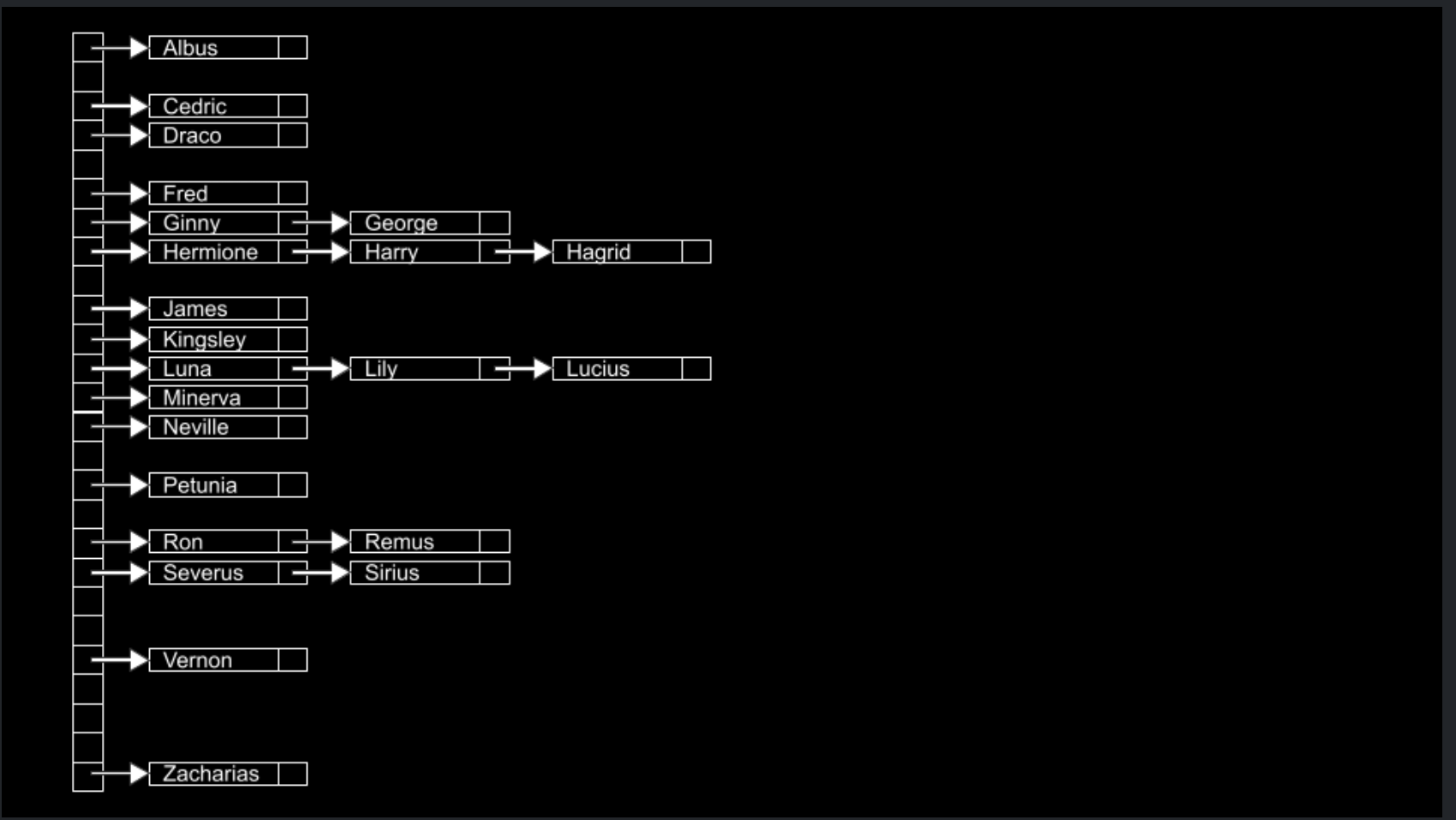

• A hash table is a combination of arrays and linked lists.
  • it is an array of pointers to nodes

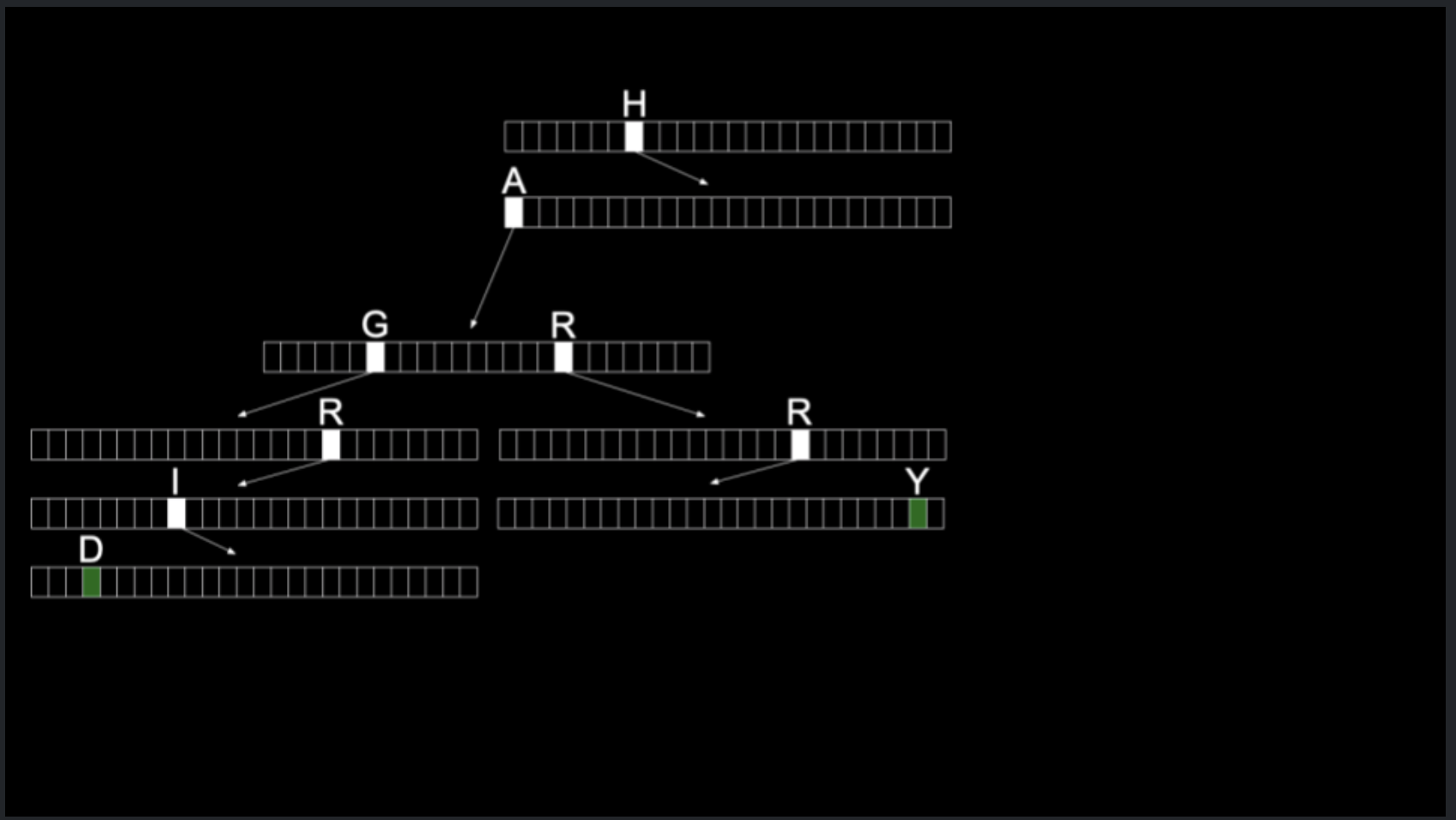

Tries

• tries are a form of data structure searchable in real time

• one downside is they use a lot of memory
